Crawler-Mounted Tower Erection Crane
Description
Technical Parameters
Zhejiang Construction Engineering Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of crawler-mounted tower erection crane in China. With abundant experience, we warmly welcome you to buy advanced crawler-mounted tower erection crane made in China here from our factory. Good service and quality products are available.

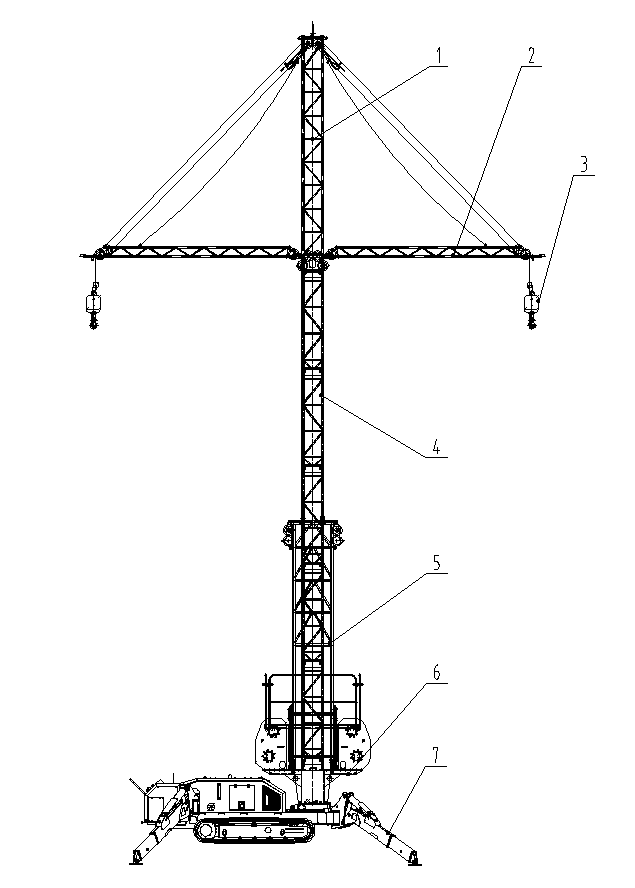

Crawler-type Light-duty Tower Erection Device
|
Serial Number |
Denomination |
Quantity |
|
1 |
Tower Top |
1 |
|
2 |
Jib |
2 |
|
3 |
Hook |
2 |
|
4 |
Mast |
1 |
|
5 |
Jacking Frame |
1 |
|
6 |
Upper slewing support |
1 |
|
7 |
Crawler Chassis |
1 |
|
Attachment Ring |
Customized to Your Needs |
Model Specifications and Application Selection Guide
ZJCM offers a variety of specifications for Crawler-Mounted Tower Erection Crane to meet the tower erection needs of different voltage levels and construction environments.

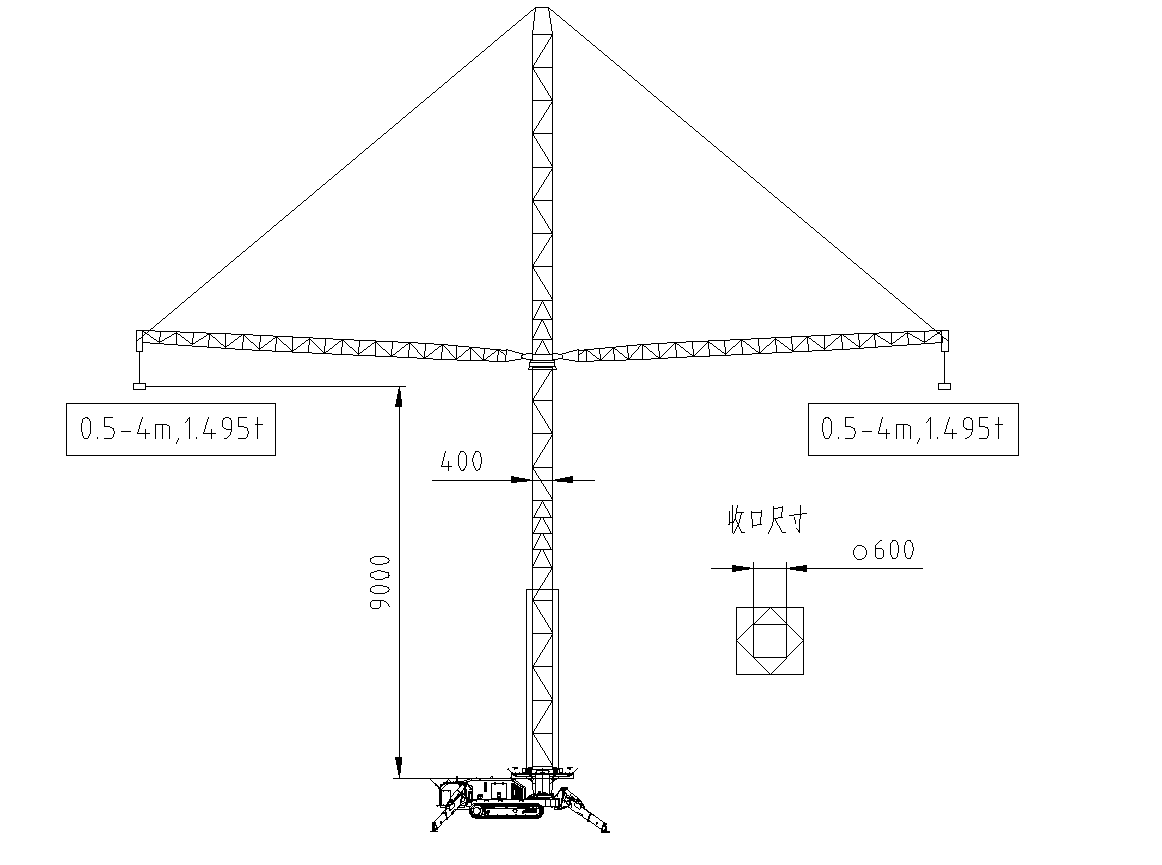

Model: MT2D06
Performance Parameter
|
Rated lifting moment(t.m) |
6 |
|
|
Rated unbalanced moment(t.m) |
1.5 |
|
|
Luffing range /m |
0.5～4 |
|
|
Maximum lifting height (m) (Under-hook height) |
Final working height |
50 |
|
Free-standing height |
9 |
|
|
Hoisting |
Fall |
1/1 |
|
Load capacity(t) |
1.5/1.5 |
|
|
Speed(m/min) |
0～15/0～15 |
|
|
Luffing |
Fall |
2/2 |
|
Speed (m/min) |
0～7.5/0～7.5 |
|
|
Jacking |
Speed (m/min) |
0.5 |
|
Moving speed |
km/h |
0～2.2 |
|
Maximum Gradeability |
Angle (°) |
20 |
|
Minimum jib retracted dimension(mm) |
600×600 |
|
|
Recommended Application Scenarios |
Mountainous and Hilly Area Line Engineering |
|

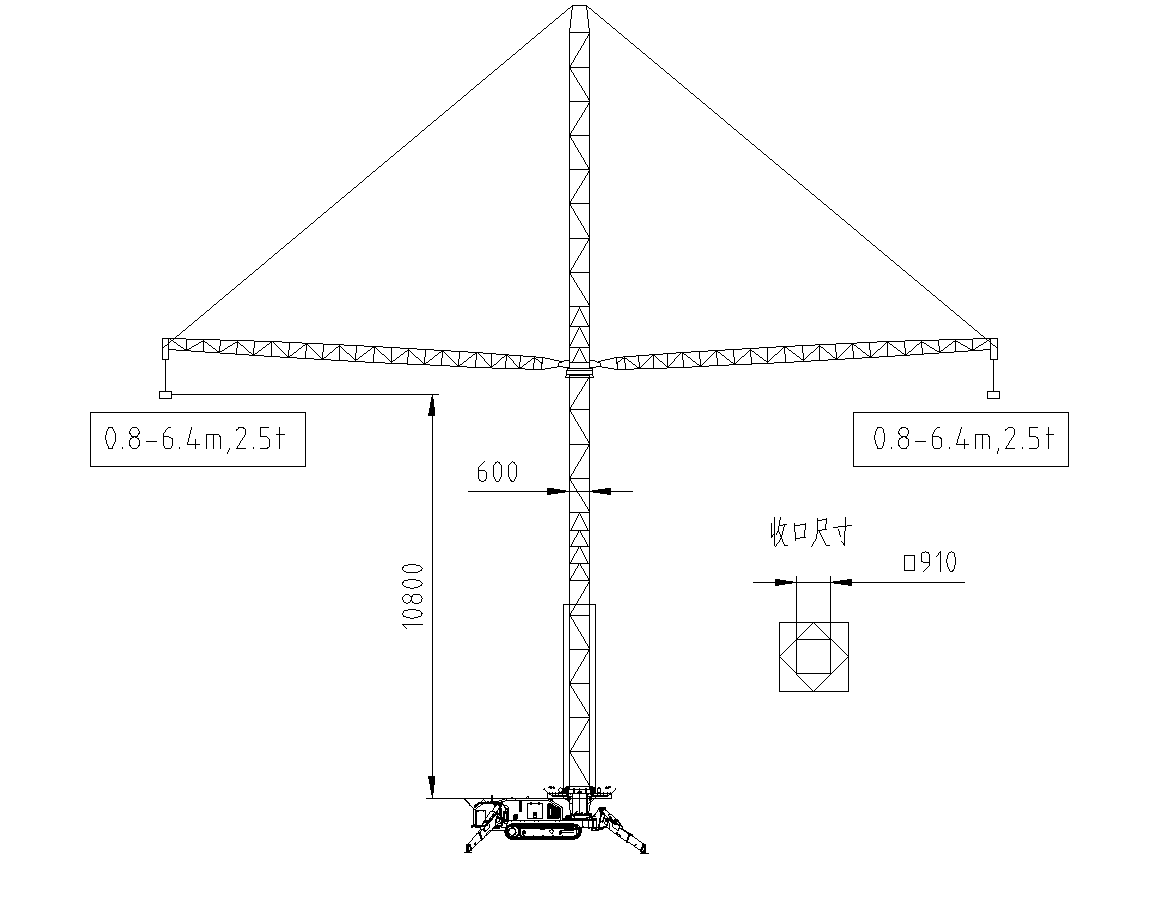

Model: MT2D16
Performance Parameter
|
Rated lifting moment(t.m) |
16 |
|
|
Rated unbalanced moment(t.m) |
4 |
|
|
Luffing range /m |
0.8～6.4 |
|
|
Maximum lifting height (m) (Under-hook height) |
Final working height |
81 |
|
Free-standing height |
10.8 |
|
|
Hoisting |
Fall |
1/1 |
|
Load capacity(t) |
2.5/2.5 |
|
|
Speed(m/min) |
0～15/0～15 |
|
|
Luffing |
Fall |
2/2 |
|
Speed (m/min) |
0～7.5/0～7.5 |
|
|
Jacking |
Speed (m/min) |
0.64(Retract)/0.3(Extend) |
|
Moving speed |
km/h |
5 |
|
Maximum Gradeability |
Angle (°) |
30 |
|
Minimum jib retracted dimension(mm) |
910×720 |
|
|
Recommended Application Scenarios |
Mountainous and Hilly Area Line Engineering |
|
