Double Swing Arm Tower Erection Crane
Description
Technical Parameters
Zhejiang Construction Engineering Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of double swing arm tower erection crane in China. With abundant experience, we warmly welcome you to buy advanced double swing arm tower erection crane made in China here from our factory. Good service and quality products are available.
|
Serial Number |
Denomination |
Quantity |
|
1 |
Tower top |
1 |
|
2 |
Jib |
2 |
|
3 |
Hook |
2 |
|
4 |
Upper slewing support |
1 |
|
5 |
Lower slewing support |
1 |
|
6 |
Mast |
1 |
|
7 |
Jacking Frame |
1 |
|
8 |
Base Frame foundation |
1 |
|
Attachment Ring |
Customized to Your Needs |
|
|
Slewing Ring |
||
|
Jacking Mechanism |
||
|
Luffing Mechanism |
||
|
Slewing Mechanism |
||
|
Electrical Control System |
||
|
Safety Protection Devices |
Core Design Principles and Advantages
1. Working Principle
Engineered for on-site tower erection in power systems, the holding pole with double rotating arm features dual rotating jibs. The working radius can be adjusted via the luffing motion of the dual jibs . A slewing system mounted on top of the pole drives the two jibs to cover the entire tower material lifting area . Two ground-based hoisting mechanisms simultaneously power the hooks (installed at the end of the dual rotating arms) to lift tower materials to the required position. When the overall lifting reaches a certain height, the ground-mounted hydraulic jacking system raises the pole's body via a jacking cage , thereby increasing the required lifting height.
2. Proprietary Safety Monitoring System
The unit is equipped with our company's exclusive safety monitoring system, which independently monitors critical operational parameters including hoisting height, lifting weight, lifting radius, lifting moment, and lifting moment difference between the two arms . All data is displayed on an intuitive, easy-to-read LCD panel at the ground control console. The entire equipment is easy to operate, safe and reliable.
Model Specifications and Application Selection Guide
ZJCM offers a variety of specifications for Double Swing Arm Tower Erection Crane to meet the tower erection needs of different voltage levels and construction environments.

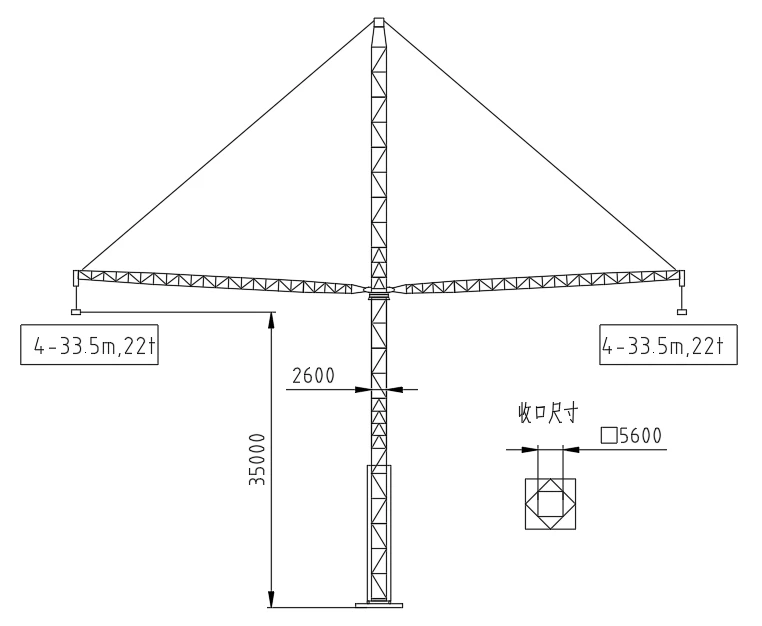

Model: T2D750
Performance Parameter
|
Rated lifting moment(t.m) |
750 |
|
|
Rated unbalanced moment(t.m) |
360 |
|
|
Luffing range /m |
4.0～33.5 |
|
|
Maximum lifting height (m) (Under-hook height) |
Final working height |
368 |
|
Free-standing height |
35 |
|
|
Hoisting |
Fall |
5/5 |
|
Load capacity(t) |
22/22 |
|
|
Speed(m/min) |
0.5～10/0.5～10 |
|
|
Speed (m/min) |
110/110 |
|
|
Luffing |
Power (kW) |
7/7 |
|
Speed (m/min) |
30/30 |
|
|
Minimum jib retracted dimension(mm) |
5600×3300 |
|
|
Maximum weight of single part(t) |
7.3 |
|
|
Recommended Application Scenarios |
Extra-large Crossing Engineering |
|
Model: T2D100
|
Rated lifting moment(t.m) |
100 |
|
|
Rated unbalanced moment(t.m) |
25 |
|
|
Luffing range /m |
2.2～20 |
|
|
Maximum lifting height (m) (Under-hook height) |
Final working height |
200 |
|
Free-standing height |
18 |
|
|
Hoisting |
Fall |
4/4 |
|
Load capacity(t) |
5/5 |
|
|
Speed(m/min) |
0～20/0～20 |
|
|
Luffing |
Fall |
6/6 |
|
Speed (m/min) |
0～20/0～20 |
|
|
Jacking |
Speed (m/min) |
0.51 |
|
Power (kW) |
2×4 |
|
|
Slewing |
Speed(r/min) |
0～0.35 |
|
Power(kW) |
1×4 |
|
|
Minimum jib retracted dimension(mm) |
2600×1000 |
|
|
Maximum weight of single part(t) |
0.33 |
|
|
Recommended Application Scenarios |
500kV and Below Power Transmission Line Engineering & Mountainous and Hilly Area Line Engineering |
|
Model: T2D80
Performance Parameter
|
Rated lifting moment(t.m) |
80 |
|
|
Rated unbalanced moment(t.m) |
22.5 |
|
|
Luffing range /m |
2～16 |
|
|
Maximum lifting height (m) (Under-hook height) |
Final working height |
200 |
|
Free-standing height |
18 |
|
|
Hoisting |
Fall |
4/4 |
|
Load capacity(t) |
5/5 |
|
|
Speed(m/min) |
0～20/0～20 |
|
|
Luffing |
Fall |
6/6 |
|
Speed (m/min) |
0～20/0～20 |
|
|
Jacking |
Speed (m/min) |
0.51 |
|
Power (kW) |
2×4 |
|
|
Slewing |
Speed(r/min) |
0～0.35 |
|
Power(kW) |
1×4 |
|
|
Minimum jib retracted dimension(mm) |
2600×1000 |
|
|
Maximum weight of single part(t) |
0.33 |
|
|
Recommended Application Scenarios |
500kV and Below Power Transmission Line Engineering & Mountainous and Hilly Area Line Engineering |
|
Model: T2D07
|
Rated lifting moment(t.m) |
7 |
|
|
Rated unbalanced moment(t.m) |
2.1 |
|
|
Luffing range /m |
0.5～5 |
|
|
Maximum lifting height (m) (Under-hook height) |
Final working height |
80 |
|
Free-standing height |
10 |
|
|
Hoisting |
Fall |
2/2 |
|
Load capacity(t) |
1.4/1.4 |
|
|
Speed(m/min) |
0～15.5/0～15.5 |
|
|
Luffing Hydraulic Control Mechanism |
Speed of Cylinder Telescoping (m/min) |
0～0.61/0～0.61 |
|
Power(kW) |
4 |
|
|
Jacking |
Speed (m/min) |
0.61 |
|
Power(kW) |
4 |
|
|
Minimum jib retracted dimension(mm) |
600×900 |
|
|
Maximum weight of single part(t) |
0.2 |
|
|
Recommended Application Scenarios |
Mountainous and Hilly Area Line Engineering |
|
